product overview

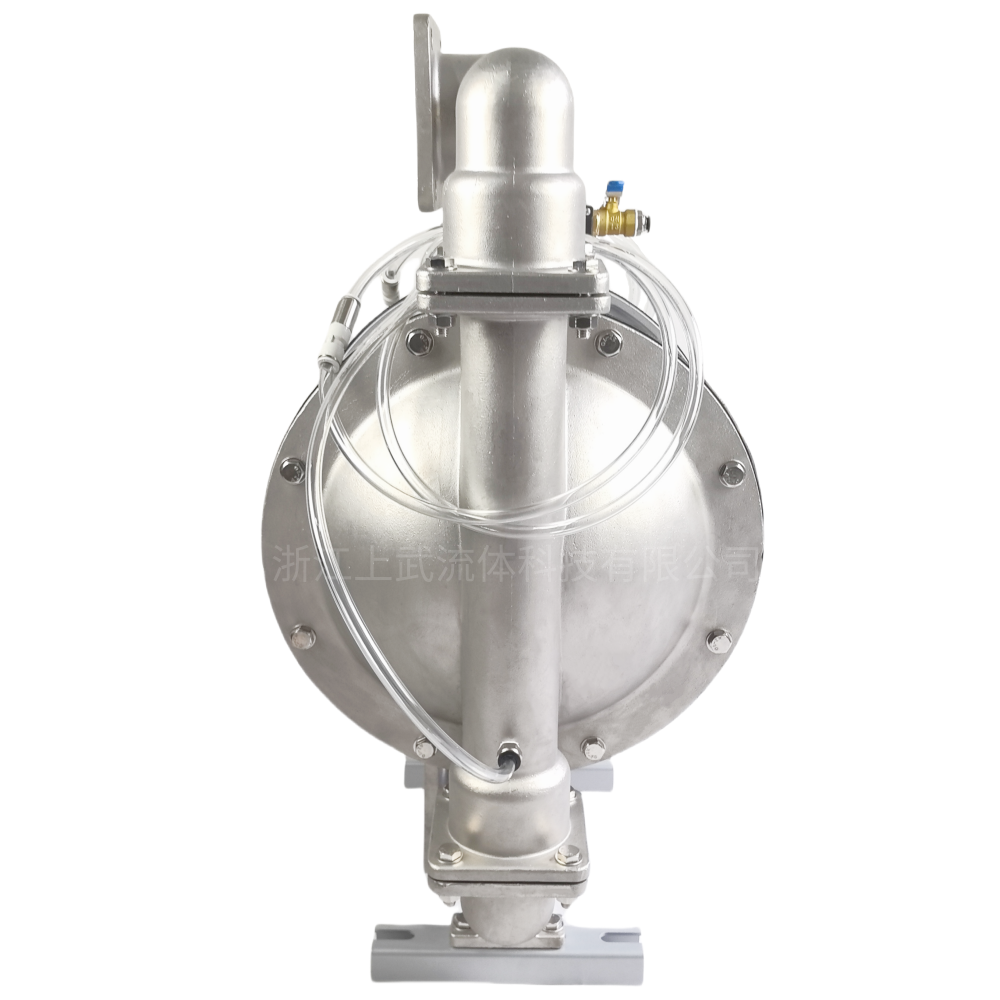

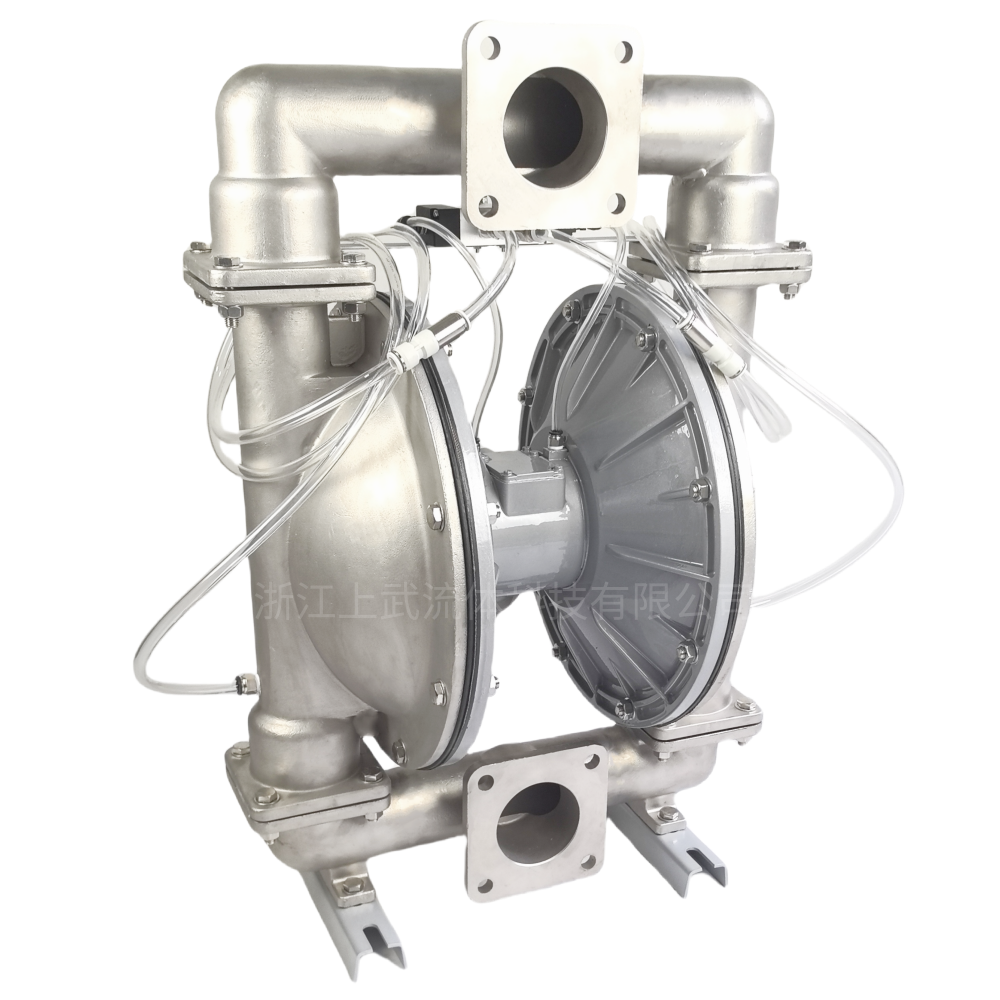

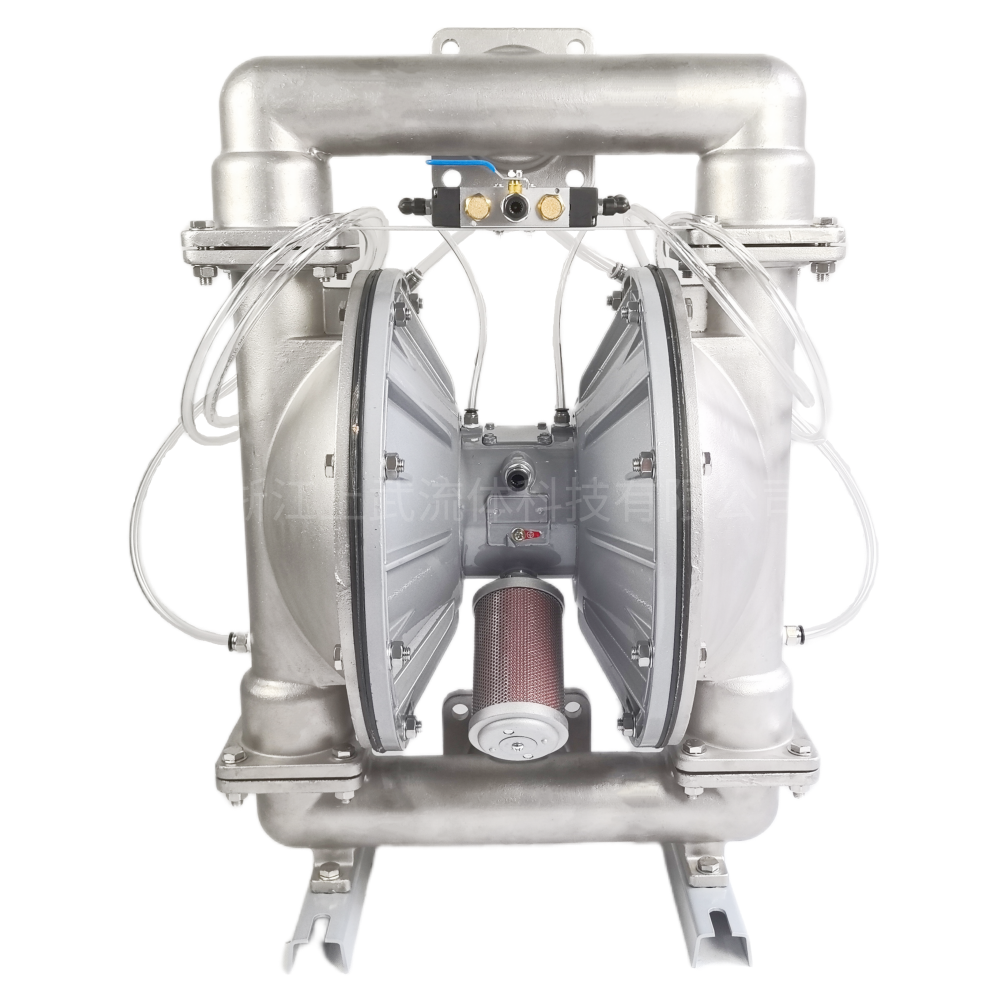

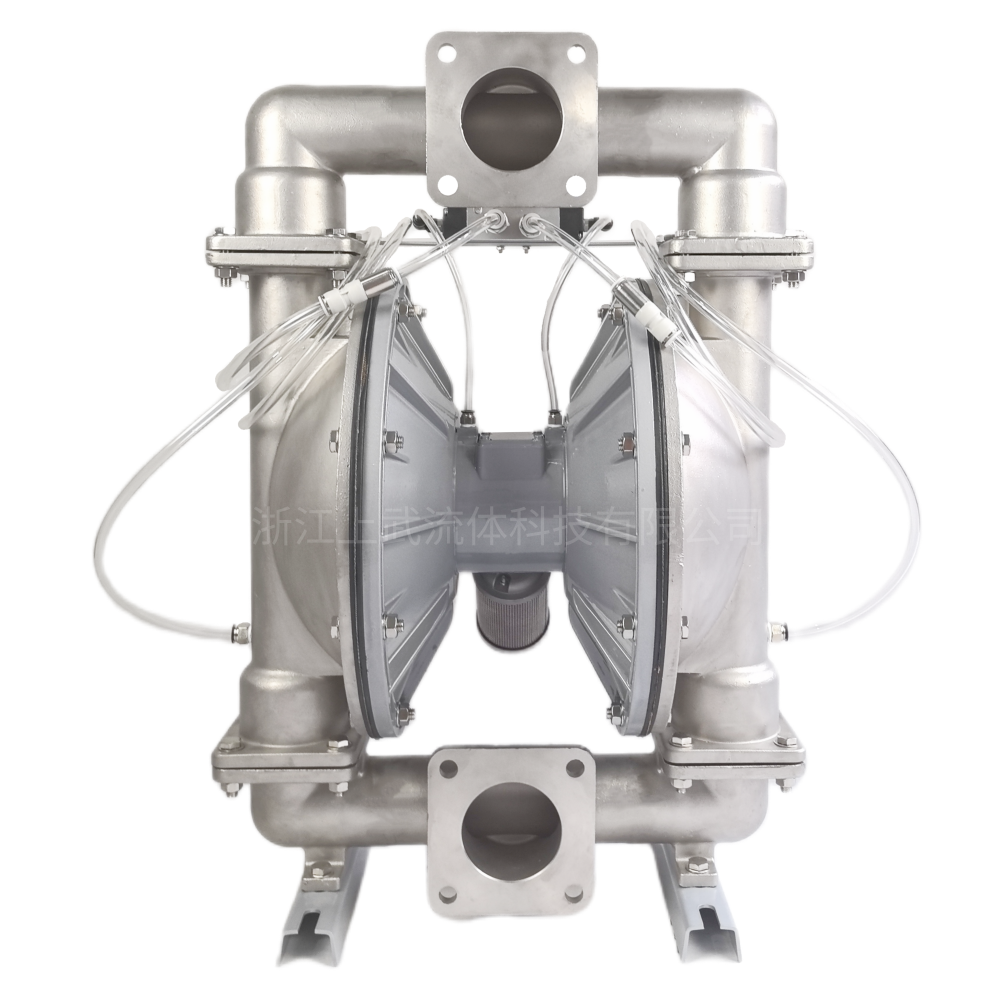

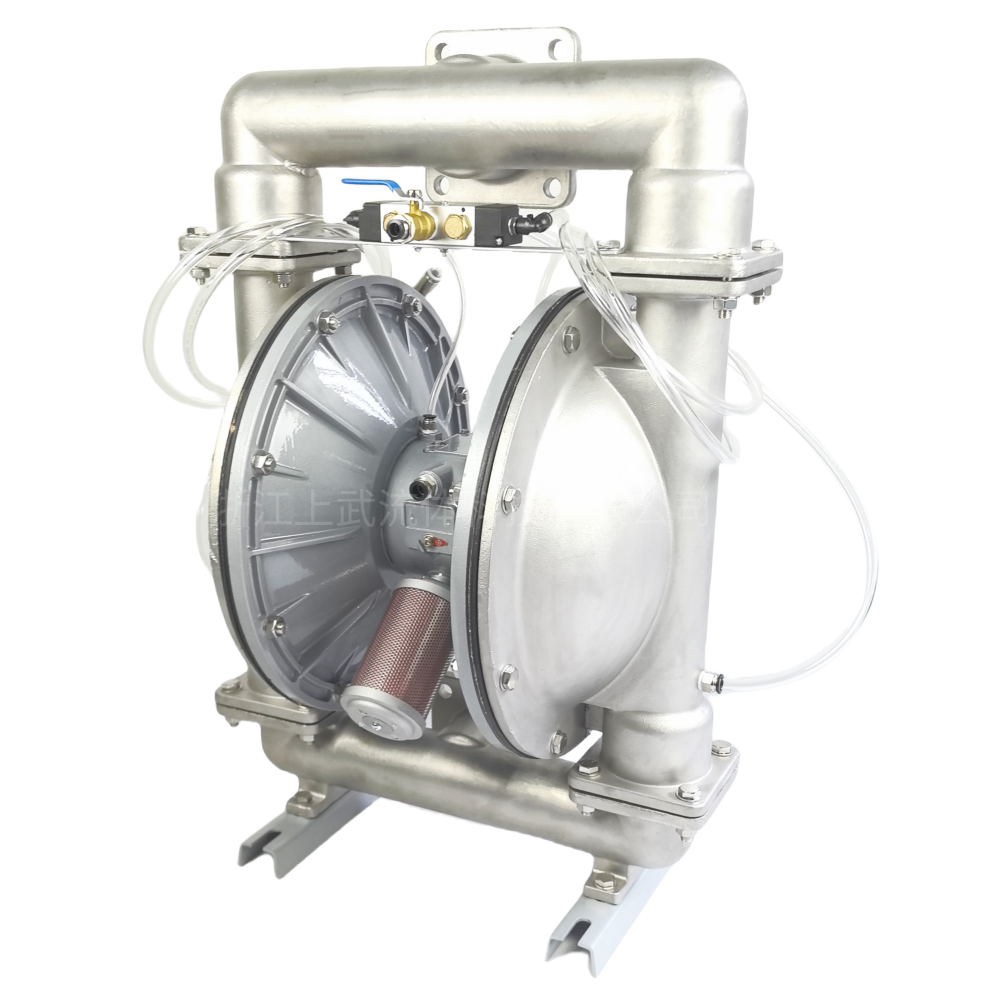

The Shangwu Fluid Pneumatic Powder Diaphragm Pump can successfully transport powdery, lightweight, dry, and flowable powders with a bulk density of 80-800 kg/m3. Widely used in the production of white carbon black, powdered activated carbon, graphite fine powder, lithium iron phosphate, light calcium carbonate, nano calcium carbonate, aluminum hydroxide, basic zinc carbonate, activated clay, expanded mica powder, diatomaceous earth, pine pollen, resin powder, pigment powder, plasticizer, flame retardant, acrylic resin, solid sodium methoxide and fine chemical, pharmaceutical raw materials and intermediates industries, as well as all light powder transportation, with a wide range of applications.
Model Meaning
For example: QBF-40 Z
Q - Refers to pneumatic
B-diaphragm type
F-Powder pump
40- Pump inlet and outlet diameter (mm)
Z-refers to material
Product Features
1. No dead center operation, able to work even under low intake pressure.
2. Good sealing, no leakage throughout the powder process, which can minimize the contact between the operator and the powder as much as possible.
3. Design an airflow induction system to prevent the possibility of powder filling the pump chamber.
4. The fluidized gas and the motor-driven gas of the pump can be separated to avoid oxidation and deliquescence of materials and air contact; Fluidized gas can be used separately for further purification and drying treatment (in contact with powder), or other gases such as nitrogen and other inert gases can be used.
5. Economical and practical, easy to install, unlike expensive traditional large pre installed powder conveying systems.
6. Lightweight and easy to use, it can be conveniently moved and used anywhere. Ready to use, no installation or debugging required;
7. Minor material agitation to avoid material heating, with no electric sparks or heat generated during operation.
8. A milder internal shear force ensures that the integrity of the material is not affected to the maximum extent possible.
9. Bolt fastening structure, connected by bolts to achieve leak proof integrity.
10. There are various materials available for the pump body, including cast steel, aluminum alloy, stainless steel, and engineering plastics.
11. It can transport powdery, lightweight, dry, and easily flowable powders with a bulk density of 80-800 kg/m3, and has a wide range of applications.
Applicable scenarios
Fine chemicals: pigments, dyes, coatings, carbon black, titanium powder, iron oxide, ceramic powder, heavy calcium, light calcium, bentonite, molecular sieve, kaolin, silica gel powder, activated carbon, acid, alkali, lime, etc
Pesticide ores: urea, ammonium bicarbonate, baking soda, solid pesticides, tungsten powder, pesticide additives, copper concentrate powder, coal powder, phosphate powder, alumina powder, etc
Construction metallurgy: fiber powder, cement, clay, yellow sand, quartz sand, clay powder, silica, limestone powder, dolomite powder, sawdust powder, glass fiber, silica, talc powder, metal powder, dye powder, etc
Food and daily chemical products: flour, starch, grains, milk powder, yeast, sugar, monosodium glutamate, crop powder, laundry detergent, etc
Other industries such as automobiles, papermaking, pharmaceuticals, water treatment, etc.: powder coatings, powder metallurgy parts, paper powder, tablet powder, raw material initial processing powder, bleaching powder, etc
