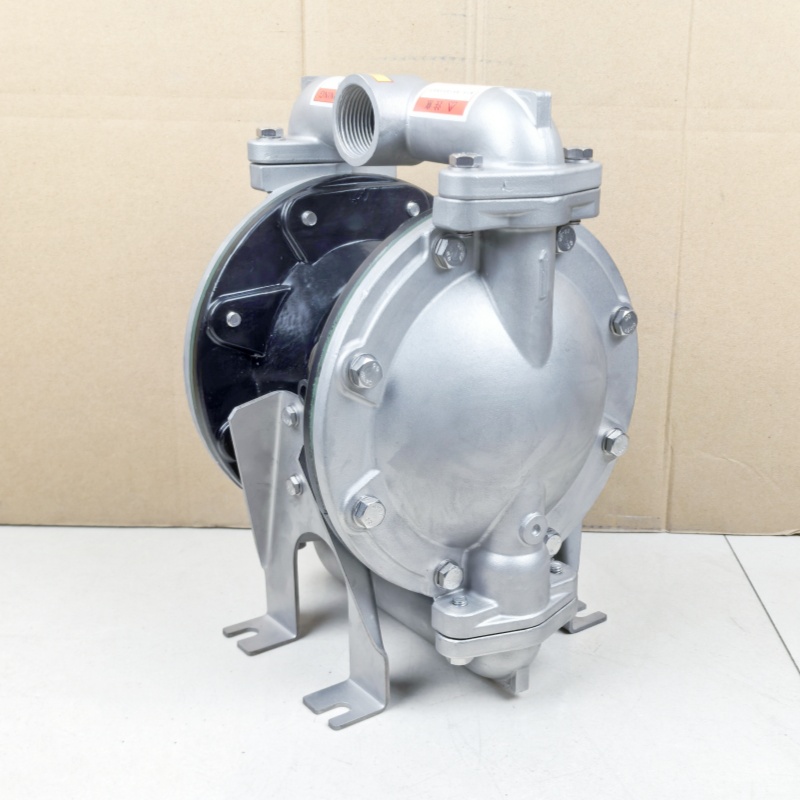

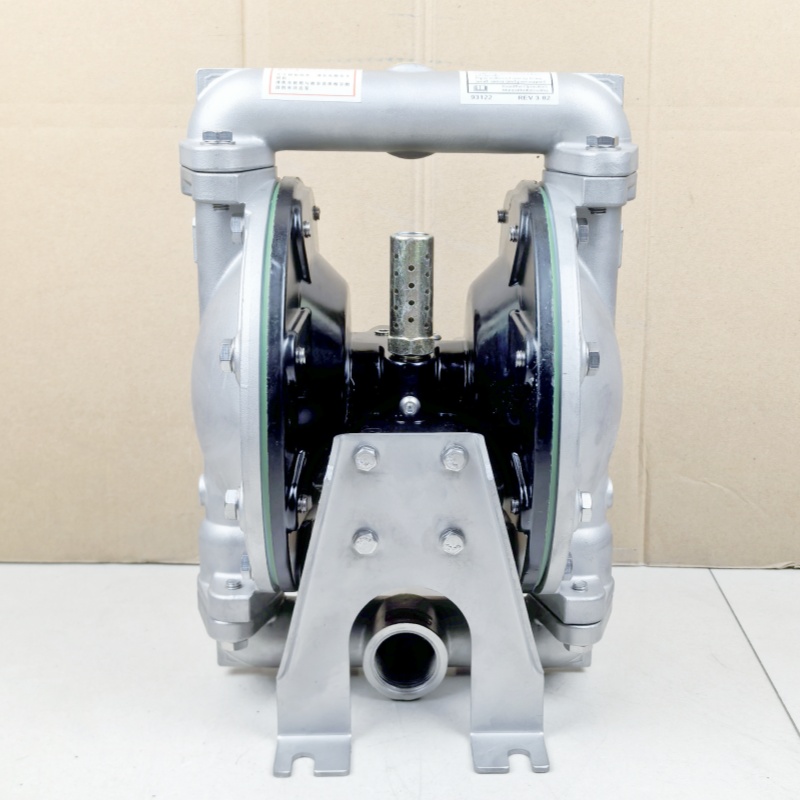

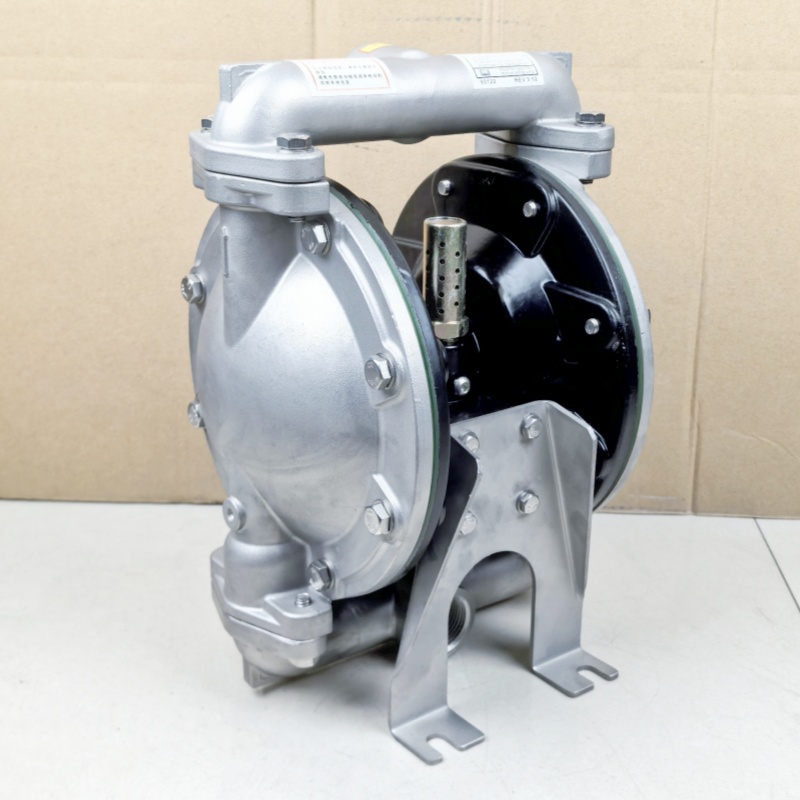

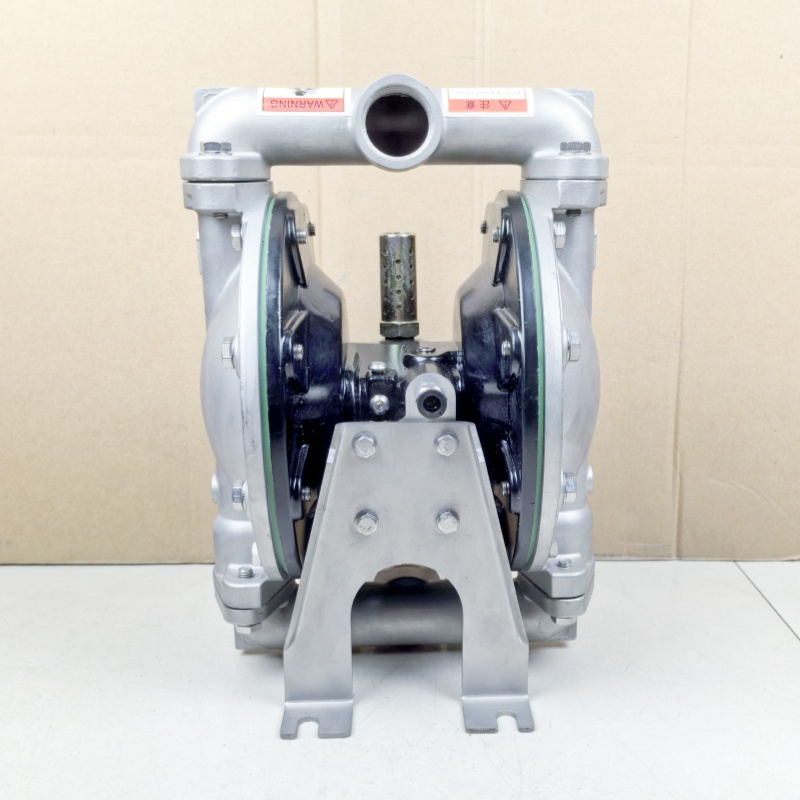

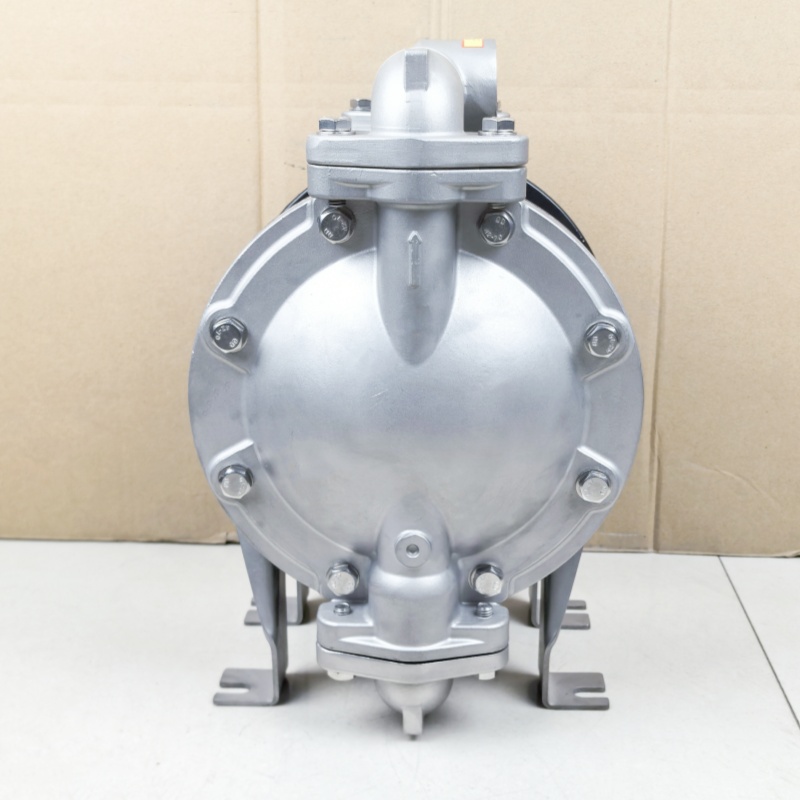

Product Overview:
QBY4 pneumatic diaphragm pump is a new type of conveying machinery. Using an air compressor to compress air as a power source, it can extract and absorb various corrosive liquids, particulate liquids, high viscosity, volatile, flammable, and highly toxic liquids.
Product features:
QBY pneumatic diaphragm pump can not only pump flowing liquids, but also transport some non flowing media. It has all the functions of submersible pumps, self-priming pumps, impurity pumps, shield pumps, mud pumps, and many characteristics of conveying machinery.
1. Spacious flow and good performance, allowing particles with a diameter of up to 10 millimeters to pass through. When pumping mud and impurities, there is minimal wear on the pump;
2. No need for irrigation or water diversion, suction up to 7 meters, lift up to 50 meters, outlet pressure ≥ 7 bar
3. Pneumatic diaphragm pumps have no rotating parts or shaft seals. The medium pumped by the diaphragm is completely separated from the moving parts and workpiece medium of the pump, and the conveyed medium will not leak outward. So when pumping toxic, volatile or corrosive media, it will not cause environmental pollution and endanger personal safety;
4. The head and flow rate can be infinitely adjusted through the opening of the air valve (the air pressure can be adjusted between 1-7 bar)
5. Can work submerged in a medium
6. No need for electricity, safe and reliable to use in flammable and explosive places
7. Diaphragm pumps have a simple structure and few vulnerable parts. This pump has a simple structure and is easy to install and maintain. The medium transported by the pump does not come into contact with moving parts such as distribution valves and connecting rods, unlike other types of pumps where performance gradually decreases due to wear and tear on components such as rotors, pistons, gears, and blades;
8. Easy to use, reliable in operation, with simple opening and closing of the gas valve for on-off operation. Even if the pump runs without medium for a long time or suddenly stops due to unexpected situations, it will not be damaged. Once overloaded, the pump will automatically stop, with self-protection performance. When the load returns to normal, it can automatically start and operate again;
9. Can transport viscous liquids (viscosity below 10000 centipoise);
10. Pneumatic pumps do not require oil lubrication and have no impact on the pump even when idling, which is a major feature of this pump.
