• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Material:
    Cast iron
    Driving mode:
    Electric
    Flow:
    1.25 m3/h
    Performance:
    No leakage
    Pump shaft position:
    Horizontal type
    Number of impeller:
    Single stage
    Lift:
    80 m
    Rotational speed:
    2900 rpm
    Shaft power:
    1.87 kw
    Suction caliber:
    15 mm
    Discharge caliber:
    15 mm
    Model:
    1/2W1.25-8B
    Product Description

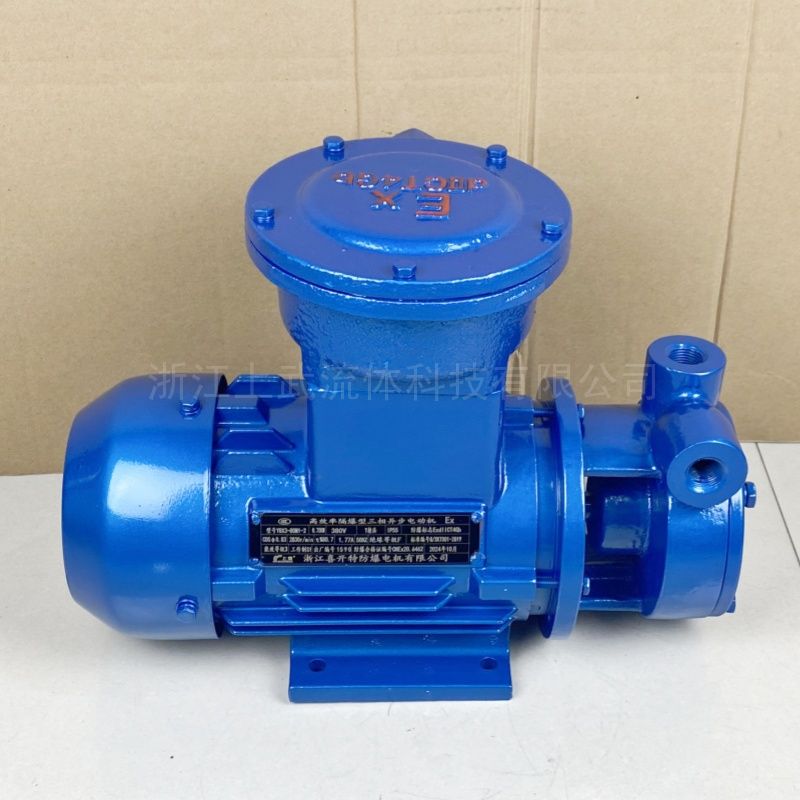

    product overview

     W-type vortex pump has compact structure, beautiful appearance, small size, low noise, reliable operation and convenient maintenance. Can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, film photographic printing and other units pumping acid, alkali, oil, rare precious liquid, venom, volatile liquid, and circulating water equipment, filter equipment. Especially easy to leak, flammable, explosive liquid pumping, choose this pump is more ideal.

    product feature

    1. More compact structure, using machine pump integration, higher precision.

    2. Mechanical seal, maintenance-free, watertight, improve efficiency and more environmentally friendly.

    3. Maintenance is more convenient, only a level of impeller, a mechanical seal, a little knowledge of the pump can be replaced accessories.

    4. Strong interchangeability, replaceable constant pressure vortex pump, no need to change the interface position.

    5. Compared with the old type packing pump, the efficiency is improved by about 2%.

    6. The impeller material is alloy and ground copper, and the service life is greatly improved. The above points are incomparable to the old pump.

    7. Instantaneous use of lift up to 160m to 250m.

    application range

    Direct vortex boiler feed water pump is used for pumping clean water and liquids with physical and chemical properties similar to water. The liquid temperature shall not exceed 90%C. 1.5DB3-0.7 is often used for boilers below 0.4MPa2T/h and below 0.7MPa1T/h. 2W12-250 is widely used in shipbuilding, textile, chemical industry, metallurgy, machinery manufacturing, aquaculture, fixed, wheel mobile fire pressure stabilization, heat exchange unit, brewing, refrigeration, plumbing installation pressure test, high-rise building water tower washing, maintenance under construction, agricultural remote sprinkler irrigation and other industrial and agricultural departments. If equipped with frequency conversion device can be used as a metering pump.

    performance parameter

    item of model flow lift
    (m)    		 rotate speed
    (r/min)    		 Power (kw) Allowable suction vacuum height (mm) Efficiency ( %) remark
    (m3/h) (L/S) shaft power matched power
    1/2W1.25-8 1.25 0.21 80 2900 1.87 0.75 3.5 21 direct connection
    3/4W1.44-10 1.44 0.25 100 2900 2.3 1.5 4 26 direct connection
    1W-0.9 1 0.3 37 1450 0.99 1.5 6.5 11 branching
    1W-0.9 1.8 0.5 27.5 1450 0.86 1.5 6.5 16 branching
    1W-0.9 2.5 0.7 19 1450 0.72 1.5 6.5 18 branching
    1W1-7 1 0.28 70 2900 1.05 1.5 2 28 direct connection
    1W2.4-10.5 2.4 0.67 105 2900 2.49 3 3.5 28 direct connection
    1W2.5-12 2.5 0.69 120 2900 2.67 3 4.5 32 direct connection
    1 1/4W4-130 4 1.08 130 2900 3.01 4 4.5 31 direct connection
    1 1/2W6-160 6 1.65 160 2900 4.01 7.5 5.5 33 direct connection
    2W12-250 12 3.35 250 2900 5.18 15 4 39 direct connection
    1.5W2.4-10.5 2.4 0.67 105 2900 2.49 3 3.5 28 direct connection
    20W-20 0.72 0.2 20 2900 0.178 0.75 6.5 22 branching
    20W-65 0.72 0.2 65 2900 0.85 2.2 6 15 branching
    25W-25 1.44 0.4 25 2900 0.378 0.75 6 26 branching
    25W-70 1.44 0.4 70 2900 1.25 3 5.5 22 branching
    32W-30 2.88 0.8 30 2900 0.735 1.5 6 32 branching
    32W-70 2.88 0.8 30 2900 1.96 4 5 30 branching
    32W-120 2.88 0.8 120 2900 4 5.5 2 34 branching
    40W-40 5.4 1.5 40 2900 1.73 4 5 34 branching
    40W-90 5.4 1.5 90 2900 4.01 7.5 3.5 33 branching
    50W-45 9 2.5 45 2900 3.06 5.5 4 36 branching
    50W-80 9 2.5 80 2900 5.62 7.5 3.5 32 branching
    65W-50 14.4 4 50 2900 5.03 11 3.5 39 branching
    1.5DB3-0.7 2.4 0.67 105 2900 2.7 3 3.5 28 direct connection
    15DB2-0.7 2.4 0.67 105 2900 2.49 3 3.5 28 direct connection
    1WA3-10.5 3 0.83 105 2900 2.49 3 3.5 32 direct connection
