- Material:
- Stainless steel
- Pump shaft position:
- Horizontal type
- Performance:
- Corrosion resistance
- Number of impeller:
- Single stage
- Lift:
- 12 m
- Flow:
- 3 m3/h
- Suction caliber:
- 20 mm
- Discharge caliber:
- 12 mm
- Model:
- 20CQ-12P
product overview

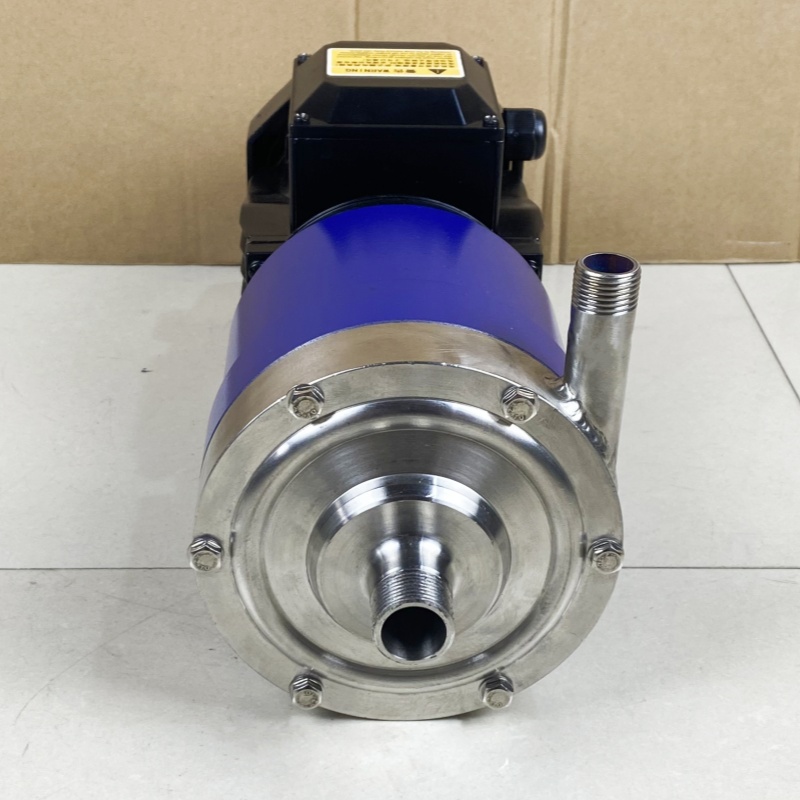

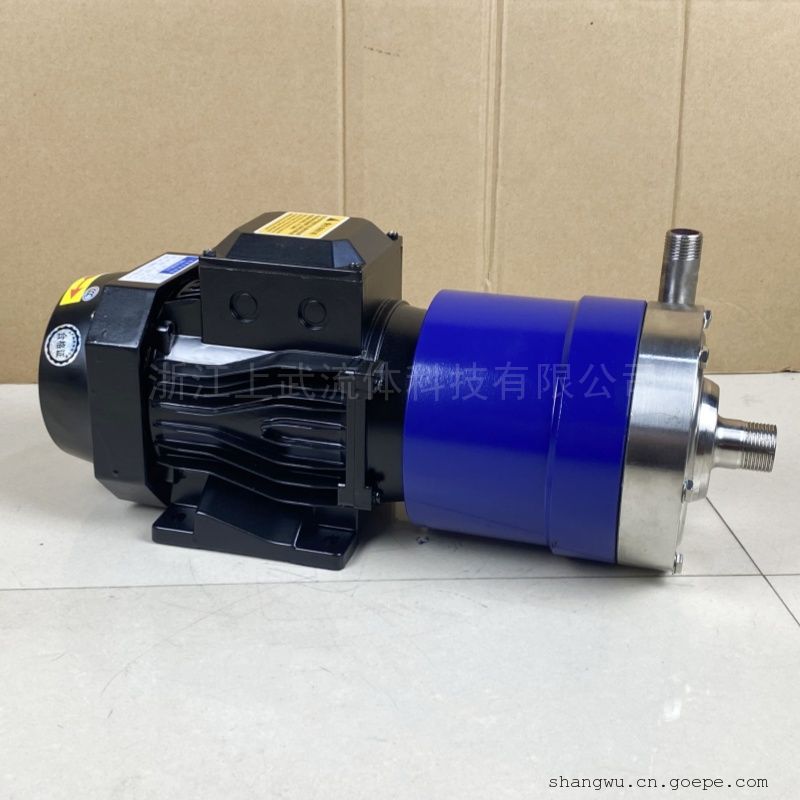

CQ stainless steel magnetic pump (referred to as magnetic pump) is the working principle of permanent magnet coupling for centrifugal pump products, reasonable design, with full seal, no leakage, corrosion resistance characteristics.
model significance
For example: 40 CQ - 20 B
40-refers to the pump inlet diameter 40 (mm)
CQ-Magnetic pump
20-finger lift 20 (m)
B-refers to explosion-proof motor (common motor omitted)
product feature
Magnetic pump to static seal instead of dynamic seal, so that the pump flow parts in a completely sealed state, completely solved the mechanical seal of other pumps can not avoid the run, run, drop of defects. Magnetic pump selection of corrosion resistance, high strength engineering plastics, steel ceramics, stainless steel as manufacturing materials, so it has good corrosion resistance, and can be transported medium from pollution.
applicable scenarios
Magnetic pump compact structure, beautiful appearance, small size, low noise, reliable operation, easy to use and maintenance. Can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, defense, scientific research institutions, metallurgy, dyes and other units pumping acid, alkali, oil rare precious liquid, venom, volatile liquid, and circulating water equipment matching, filter matching. Especially easy to leak, easy to burn, explosive liquid pumping. Explosion-proof motor selection of this pump is more ideal equipment.
performance parameter
item of model caliber Flow rate (m3/h) Head (m) Motor power (kW) Voltage (V) texture Import (mm) Outlet (mm) 14CQ-5 14 10 1.2 5 0.12 220/380 stainless steel 16CQ-8 16 12 1.8 8 0.18 220/380 20CQ-12 20 12 3 12 0.37 220/380 25CQ-15 25 20 5.4 15 1.1 380 32CQ-15 32 25 6.5 15 1.1 380 32CQ-25 32 25 4.8 25 1.1 380 40CQ-20 40 32 10 20 2.2 380 40CQ-32 40 32 11.5 32 4 380 50CQ-25 50 40 14.4 25 4 380 50CQ-32 50 40 13.2 32 4 380 50CQ-50 50 32 7.8 50 5.5 380 65CQ-25 65 50 16.8 25 5.5 380 65CQ-32 65 50 25 32 7.5 380 80CQ-32 80 65 50 32 11 380 50CQ-50 80 65 50 50 15 380 100CQ-32 100 80 60 32 15 380 100CQ-50 100 80 60 50 18.5 380 Note: 16CQ-8-100CQ-50 in the table can be equipped with explosion-proof motor - Name（chinese）
