product overview

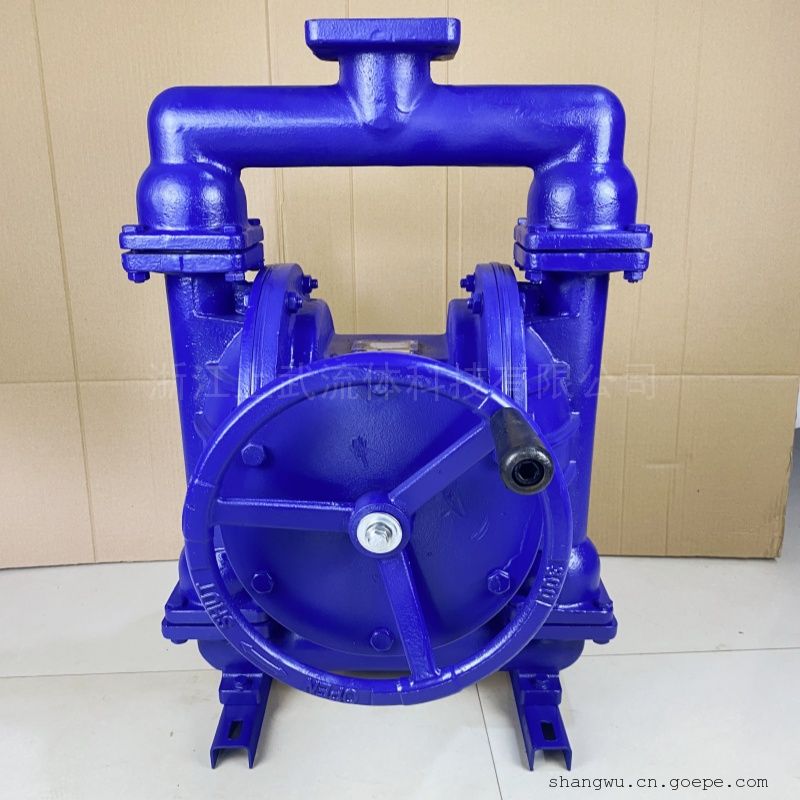

QBS series manual diaphragm pump can pump both flowing liquid, but also can transport some difficult to flow medium, with self-priming pump, shield pump, slurry pump and impurity pump and other transport machinery many advantages.

operating principle

Manual diaphragm pump for low lift, small flow of water lifting operations, by the pump body, in and out of the water pipe, inlet and outlet valves, diaphragm and push rod, etc. The pump body may consist of one or two pump chambers. Diaphragm pump with two pump cavities, its diaphragm is arranged in the center of the pump body, or two diaphragms are installed in the outer sides of the separated two pump cavities respectively. When working, the handwheel connected with the diaphragm is manipulated by hand to push the diaphragm into and open the reciprocating motion, so that the volume of the two pump chambers alternately expands and contracts. When the pump cavity is enlarged, the pressure is reduced, the inlet valve is opened and the outlet valve is closed, and water flows into the pump cavity from the inlet pipe; when the pump cavity is reduced, the pressure is increased, the inlet valve is closed, the outlet valve is opened, and the water in the pump cavity flows out from the drain pipe. The two pump cavities alternately absorb water and drain water, and the water can be pumped 0~20 tons per hour.

product feature

1, do not need electricity, safe and reliable use in flammable and explosive places;

2, the flow is spacious, the performance is good, allowing the particle diameter to reach 10 mm. Pumping mud, impurities, pump wear little;

3, lift, flow can be achieved by hand speed stepless adjustment;

4, manual diaphragm pump no rotating parts, no shaft seal, diaphragm pumping medium and pump moving parts, workpiece media completely separated, the medium will not leak out. So pumping toxic, easy to play or corrosive medium, will not cause environmental pollution and harm personal safety;

5, no irrigation water, suction range 2m, lift 30m, outlet pressure 3kgf/cm2;

6, easy to use, reliable work, start and stop simply shake and stop shaking the handwheel, even if due to accidental idle conditions and long time without medium operation or sudden stop, the pump will not be damaged.

7, simple structure, less wearing parts, the pump structure is simple, easy to install, the pump delivery medium will not contact the moving parts such as the link, unlike other types of pumps due to rotor, piston, gear, blade and other parts of the single loss and performance gradually decline;

applicable scenarios

1, manual diaphragm pump suction peanut butter, pickles, mashed potatoes, small red sausage, jam, apple butter, chocolate and so on.

2, manual diaphragm pump suction paint, gum, pigment.

3, pumping adhesive and glue, all kinds of available pump suction.

4, all kinds of tiles, porcelain, brick and pottery glaze slurry.

5, manual diaphragm pump oil well drilling, pumping sediment and grouting.

6. Manual diaphragm pump sucks various emulsions and fillers.

7, pumping all kinds of sewage.

8. Pump the tanker and clear the barge to suck the sewage in the warehouse.

9. Abrasives, corrosives, petroleum and mud, cleaning grease and general containers.

10, pumping mines, tunnels, tunnels, ore dressing, slag in the water. Pump cement grout and mortar.

performance parameter

Note: Due to the technical improvement parameters of the product may change to some extent, the company will not inform you otherwise. Please consult the technical department of the company for new data.
