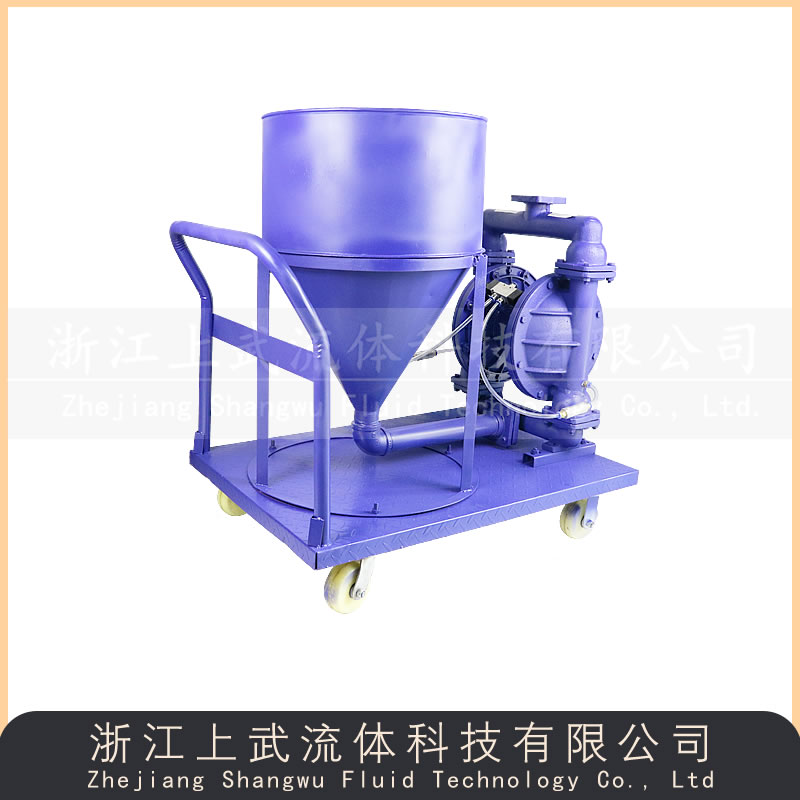

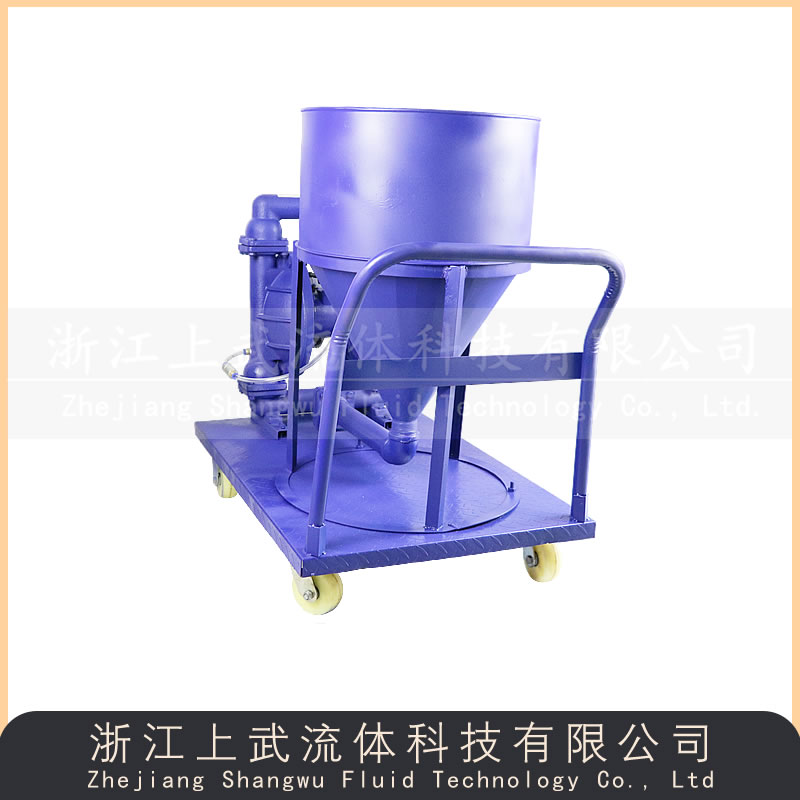

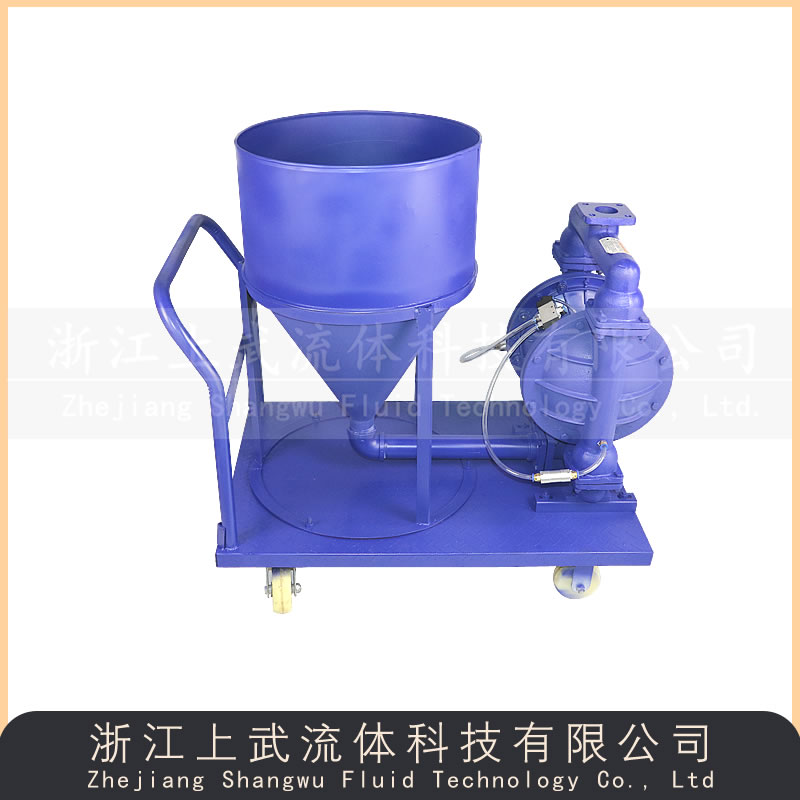

Mobile pneumatic powder diaphragm pump Cart pneumatic dust diaphragm pump Product overview
Mobile pneumatic powder diaphragm pump Cart type pneumatic dust diaphragm pump can successfully transport bulk density of 80~800kg/m3 powder, light, dry, easy to flow powder. Widely used in white carbon black, powdered activated carbon, graphite fine powder, lithium iron phosphate, light calcium carbonate, nano calcium carbonate, aluminum hydroxide, basic zinc carbonate, activated clay, expanded mica powder, diatomite, pine pollen, resin powder, pigment powder, plasticizer, flame retardant, acrylic resin, solid sodium methoxide and fine chemicals, pharmaceutical raw materials and intermediates production industries and all light powder transportation, the use is very wide.
Mobile pneumatic powder diaphragm pump Cart type pneumatic dust diaphragm pump Product characteristics
1. No dead center operation, even in the case of low intake pressure can also work.
2. Good sealing performance, no leakage of powder throughout the process, can avoid contact between operators and powder as much as possible.
3. Designed with an airflow induction system to prevent the possibility of powder filling the pump chamber.
4. Fluidizing gas and pump motor driving gas can be separated to avoid oxidation and deliquescence of materials in contact with air; fluidized gas can be further purified and dried separately (in contact with powder), and other gases (such as inert gases such as nitrogen) can also be used.
5. It is economical, practical and easy to install, unlike expensive traditional large pre-installed powder delivery systems.
6. Easy to use, easy to move anywhere. It is ready to use, free of installation and debugging;
7. Minute material agitation, avoid material heating, no spark during operation, no heat generation.
8. Milder internal shear forces * ensure that the integrity of the material is not affected.
9. Bolt-fastening structure, using bolted connections to achieve leak-proof integrity.
10. Various materials, pump body materials are cast steel, aluminum alloy, stainless steel and engineering plastics and other materials.
11. It can convey powdery, lightweight, dry and flowable powder with bulk density of 80~800kg/m3, and has a wide range of uses.
Mobile pneumatic powder diaphragm pump Cart type pneumatic dust diaphragm pump Product use
Fine chemical industry: pigment, dye, paint, carbon black, titanium powder, iron oxide, ceramic powder, heavy calcium, light calcium, bentonite, molecular sieve, kaolin, silica gel powder, activated carbon, acid, alkali, lime, etc.
Pesticide ore: urea, ammonium bicarbonate, soda ash, solid pesticides, tungsten powder, pesticide additives, copper concentrate powder, coal powder, phosphate rock powder, alumina powder, etc.
Building metallurgy: fiber powder, cement, clay, yellow sand, quartz sand, clay powder, silica, limestone powder, dolomite powder, sawdust powder, glass fiber, silica, talc powder, metal powder, dye powder, etc.
Food daily chemicals: flour, starch, grain, milk powder, yeast, sugar, monosodium glutamate, crop powder, washing powder, etc.
Other industries such as automobile, paper making, medicine, water treatment, etc.: powder coating, powder metallurgy parts, paper powder, tablet powder, raw material preliminary processing powder, sodium hydroxide, bleaching powder, sodium peroxide, etc.
Mobile pneumatic powder diaphragm pump Cart pneumatic dust diaphragm pump Product advantages
More efficient production process, replacing traditional manual powder conveying method;
Improve automation, reduce energy consumption, reduce raw material waste, reduce operating costs;
Minute material agitation, avoid material heating, no spark during equipment operation, no heat generation;
Milder internal shear force, * maximum ensure that the integrity of the material characteristics are not affected;
More perfect enclosed space, so that materials and the outside world completely isolated, eliminate air pollution, no dust leakage, ensure personal safety more portable appearance design, do not need special equipment, size is small, can be used as mobile equipment.
Mobile pneumatic powder diaphragm pump Cart type pneumatic dust diaphragm pump Technical parameters

specifications and models	entrance and exit path	* High traffic	lift	* Large gas supply pressure	* Large air consumption
QBF	mm	Kg/h	m	kg/cm	m3/min
QBF-25	25	0-800	10	7	1
QBF-32	32	0-1000	10	7	1
QBF-40	40	0-1200	10	7	1
QBF-50	50	0-2000	10	7	1.5
QBF-65	65	0-2500	10	7	1.5
QBF-80	80	0-3000	10	7	2.5
QBF-100	100	0-3200	10	7	2.5
