Product DescriptionCompany Info.<>
- Material:
- Stainless steel
- Performance:
- Corrosion resistance
- Allowable particle value:
- 1.5 mm
- Suction range:
- 4 m
- Outlet pressure:
- 0.3 Mpa
- Lift:
- 30 m
- Flow:
- 4.5 m3/h
- Power:
- 1.5 kw
- Model:
- DBY
product overview

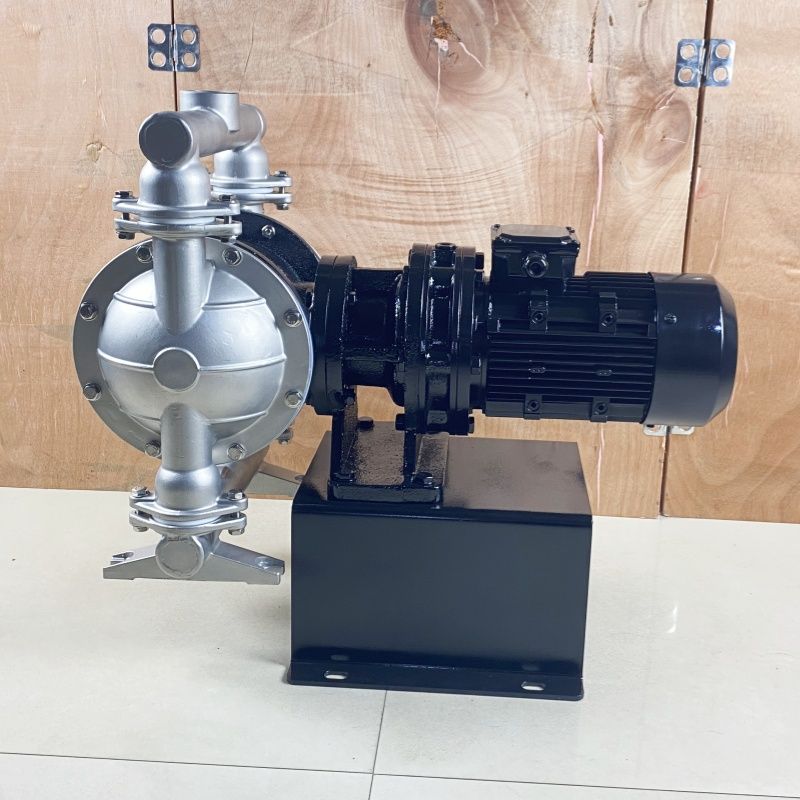

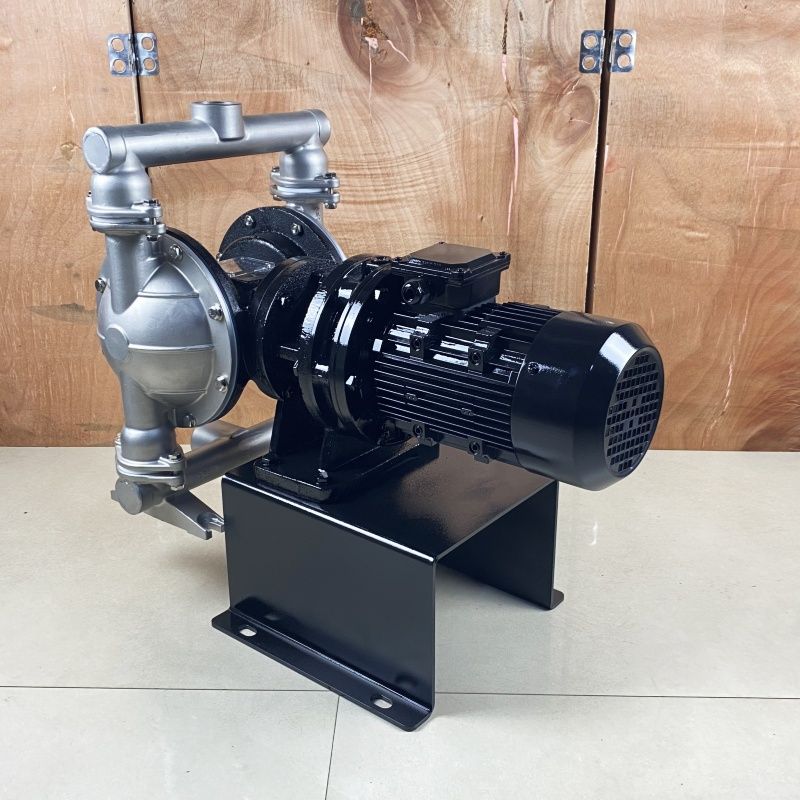

DBY series electric diaphragm pump replaces some centrifugal pumps and screw pumps to be used in petrochemical, ceramic, metallurgical and other industries. The pump is suitable for low pressure, that is, the outlet pressure is 3kgf/cm2.
model significance
For example: DBY - 40 S
DBY-refers to electric diaphragm pump
40-refers to the pump inlet and outlet diameter (mm)
S-refers to material (engineering plastics)
product feature
1, no irrigation water, self-absorption capacity of 3 meters.
2, through the performance is good, the diameter of the particles below 10 mm, mud, etc. can be effortlessly passed.
3. Since the diaphragm will be separated from the transmission medium and the transmission mechanical parts, the medium will not leak outward; and the pump itself has no shaft seal, and the service life is greatly extended; according to different media, the diaphragm can be divided into neoprene, fluororubber, nitrile rubber, polytetrafluoroethylene, Teflon (F46), etc., which can meet the requirements of different customers.
4, the pump body medium overflow part, according to different user requirements, divided into cast iron, stainless steel, rubber lining, aluminum alloy, engineering plastics PP, fluoroplastic PVDF, fluorine lining and other materials, the motor can be divided into ordinary motor, explosion-proof motor, speed reduction motor and electromagnetic speed regulation motor.
performance parameter
item of model number Inlet and outlet diameter (mm) Flow rate (m3/h) Head (m) Suction range (m) Allowable particles (mm) Motor power KW DBY-10 10 0.5 40 3 1 0.55 DBY-15 15 0.75 40 3 1 0.55 DBY-25 25 3.5 40 4 2.5 1.5 DBY-40 40 4.5 40 4 4.5 1.5 DBY-50 50 6.5 40 4.5 8 2.2 DBY-65 65 8 40 4.5 8 2.2 DBY-80 80 16 40 5 10 4 DBY-100 100 20 40 5 10 4 application range
1, all kinds of toxic, flammable, volatile liquids.
2, all kinds of strong acid, alkali, strong corrosive liquid.
3, can transport higher temperature medium 150℃.
4, as a variety of filter press pre-stage pressure device.
5. Hot water recovery and circulation.
6. Tank trucks, oil depots, oil handling.
7. Diaphragm pumps pickle jam, mashed potatoes, chocolate, etc.
8, diaphragm pump suction paint, gum, pigment binder.
9, all kinds of porcelain glaze cement grouting slurry.
10, all kinds of rubber latex, organic solvents, fillers.
11. Diaphragm pumps are used to suck sewage and residual oil from the tank barges.
12. Hops and yeast slurry, syrup, molasses.
13, electric diaphragm pump suction mine, tunnel, tunnel, sewer sewage, sediment.
- Name（chinese）
- 浙江上武流体科技有限公司
- Name（English）
- Zhejiang Shangwu Fluid Technology Co., Ltd.
- China credit code
- 91330324MA2CN4NM41 Identity Verification
- Registered Capital
- 10,000,000 CNY
- Operating term
- 2018-03-13 ~ ****
- Address
-
Yongjia County, Wenzhou, Zhejiang, China
- Nearby port
- Wenzhou
The company mainly sells diaphragm pumps. Pneumatic diaphragm pumps can not only pump flowing liquids, but also transport some media that are difficult to flow. They have the functions of submersible pumps, self-priming pumps, impurities pumps, shielded pumps, mud pumps and many characteristics of conveying machinery. The flow is spacious and the passing performance is good, allowing passage of particles up to 10 mm. When pumping mud and impurities, there is little wear on the pump; No need for irrigation and water diversion, outlet pressure 7bar The pneumatic diaphragm pump has no rotating parts or shaft seals. The medium pumped by the diaphragm and other is completely separated from the moving parts of the pump and the workpiece media, and the medium transported will not leak out. Therefore, when pumping toxic, volatile or corrosive media, it will not cause environmental pollution and endanger personal safety; The pneumatic pump does not require oil lubrication, and even if it is idling, it will not have any effect on the pump. This is the characteristic of this pump.- Name（chinese）
